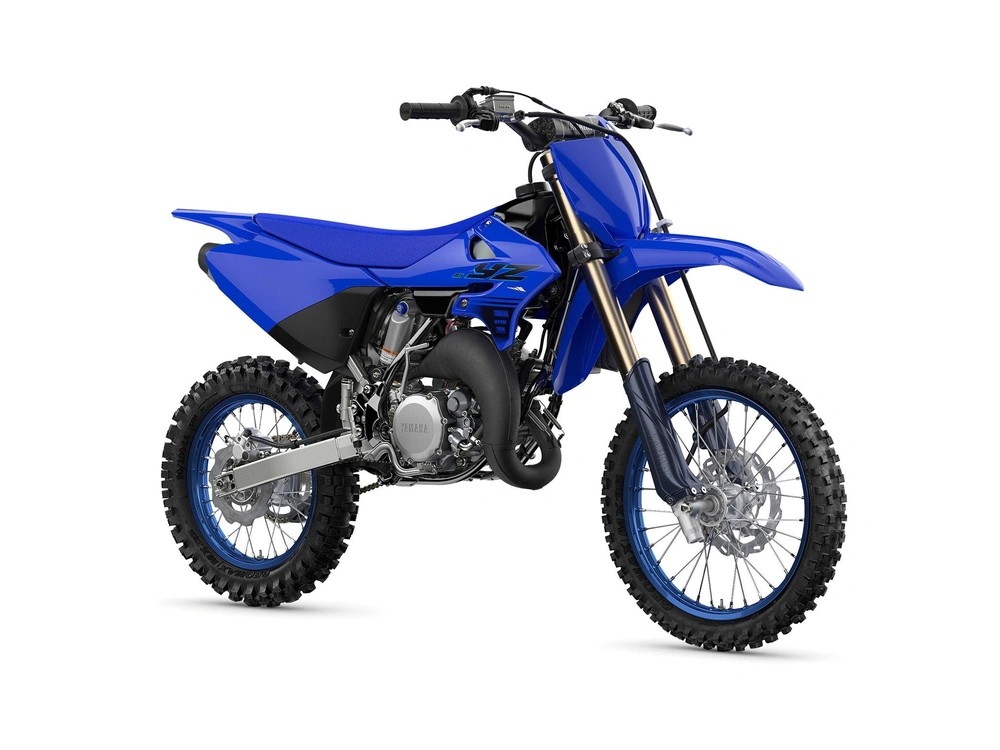

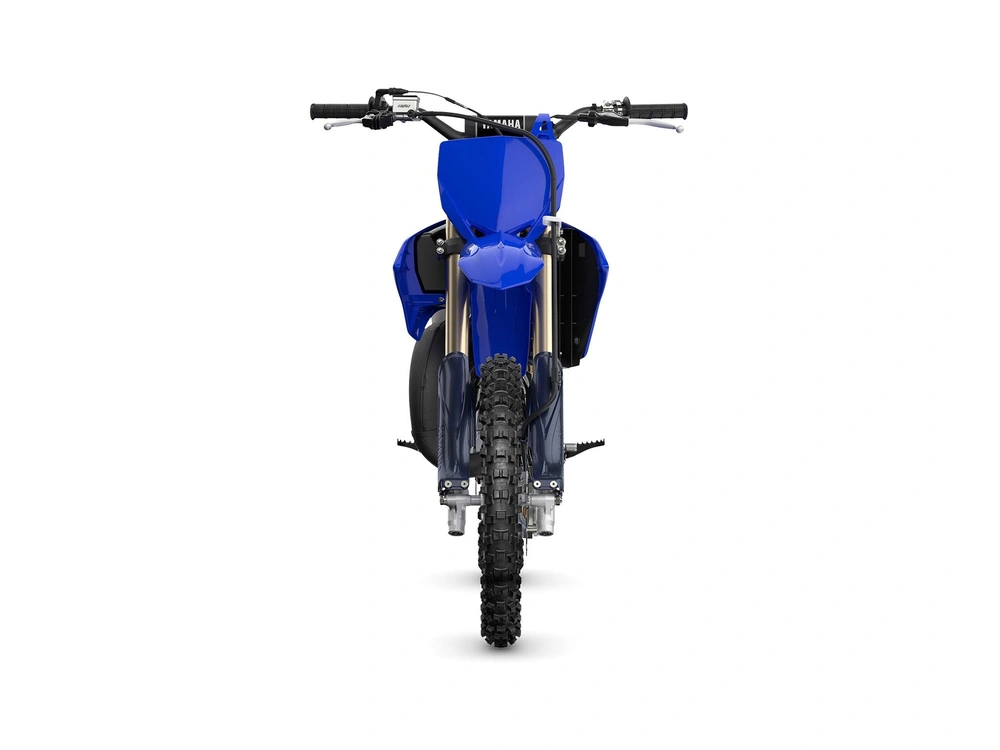

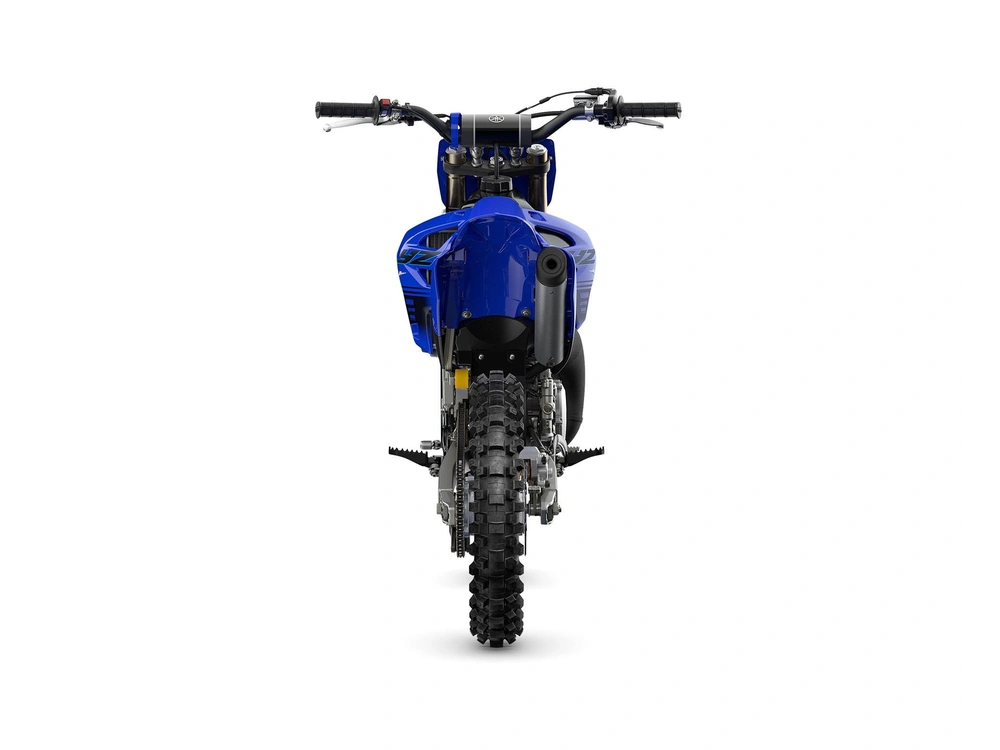

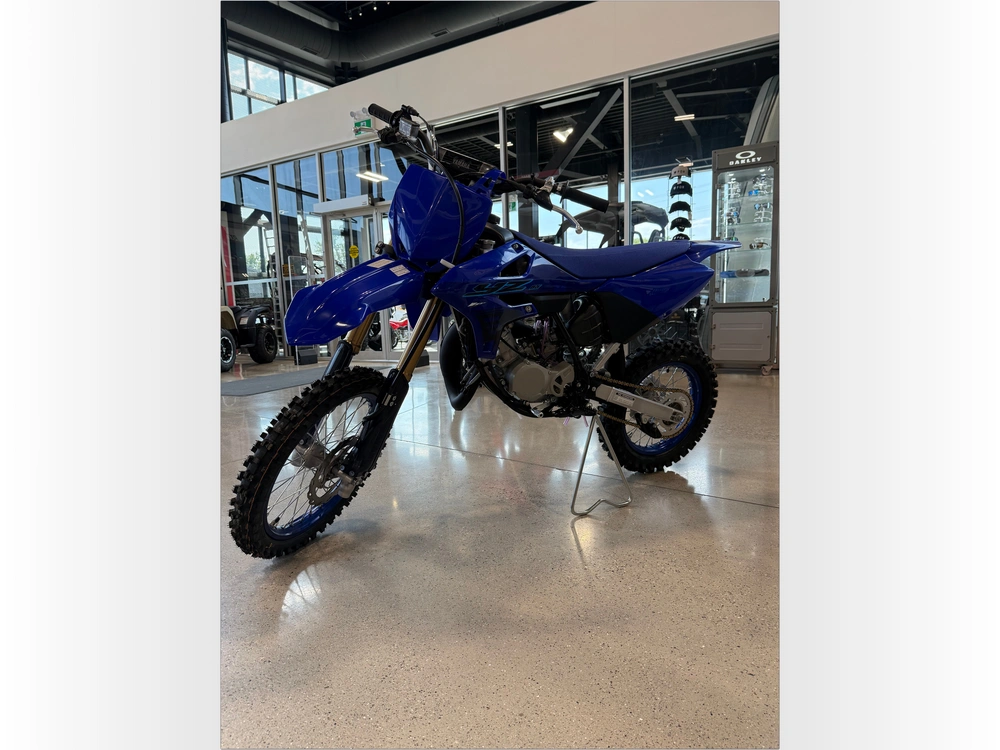

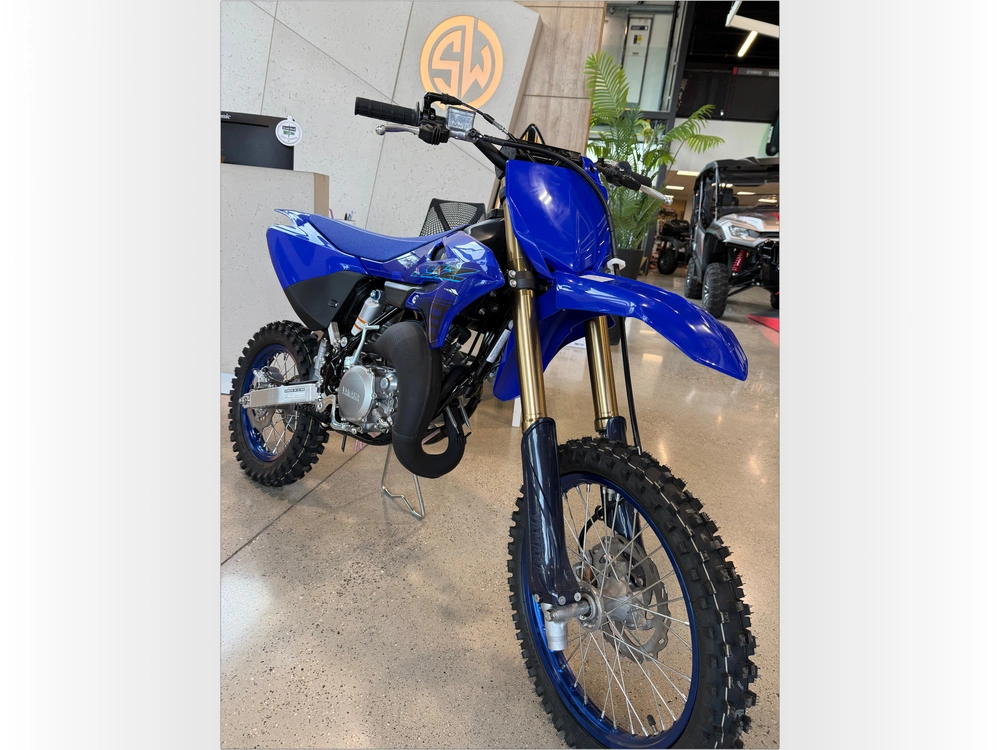

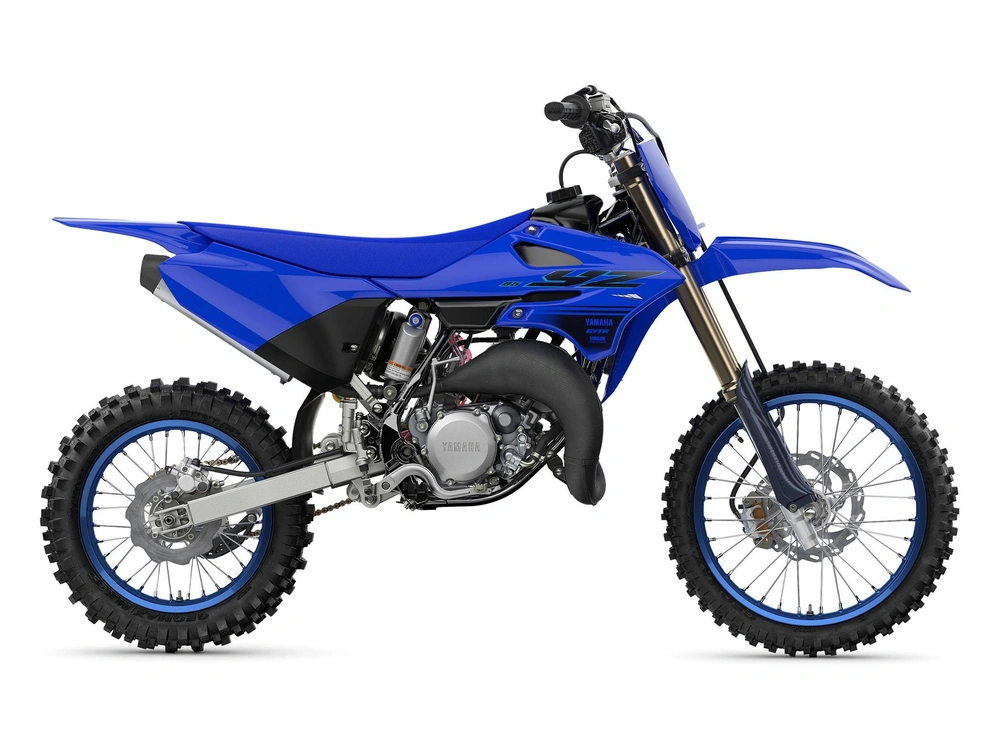

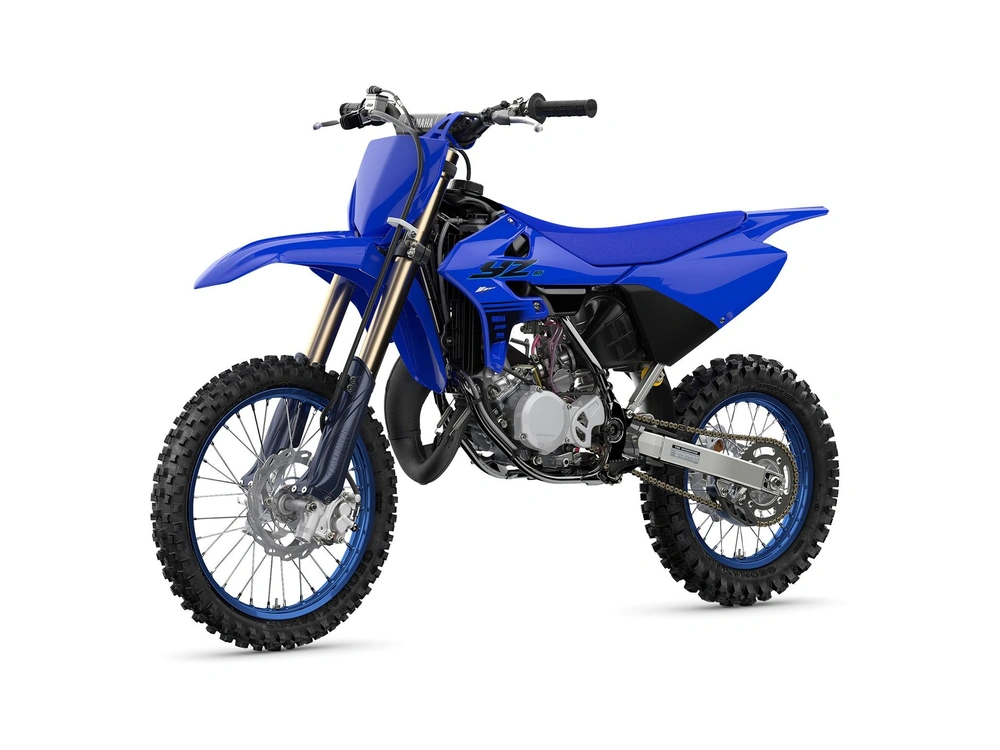

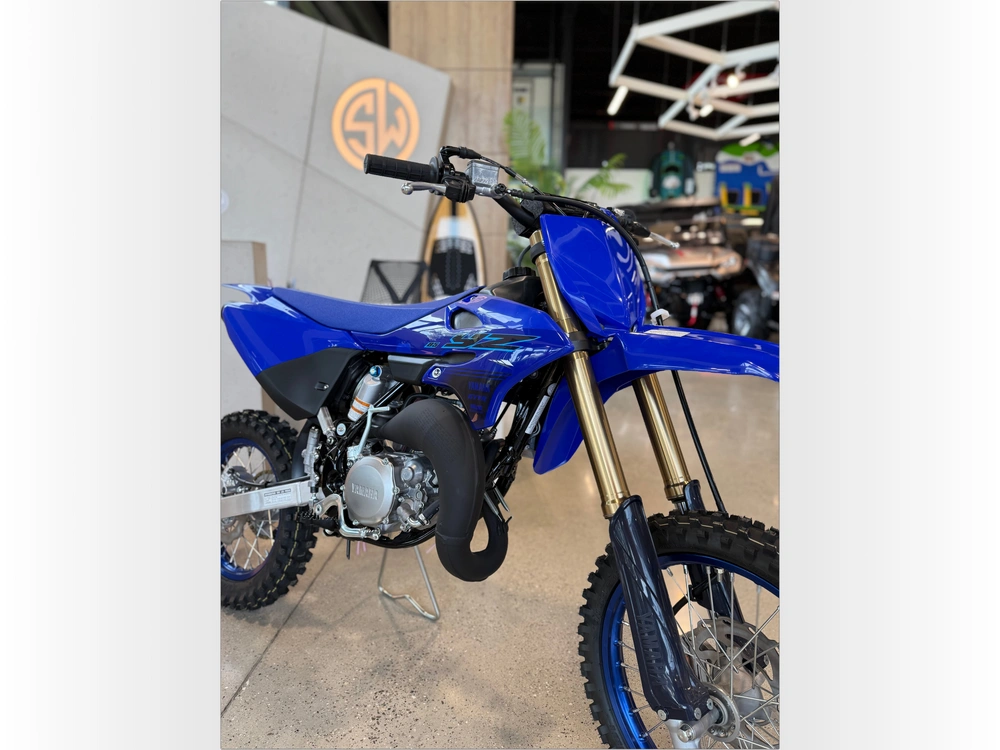

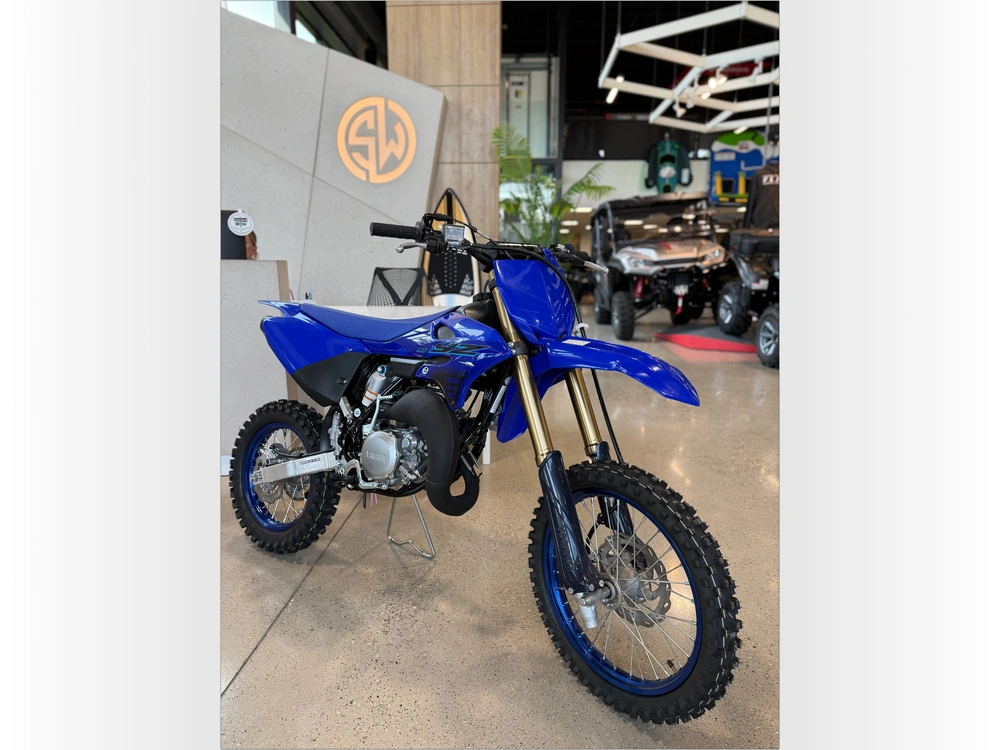

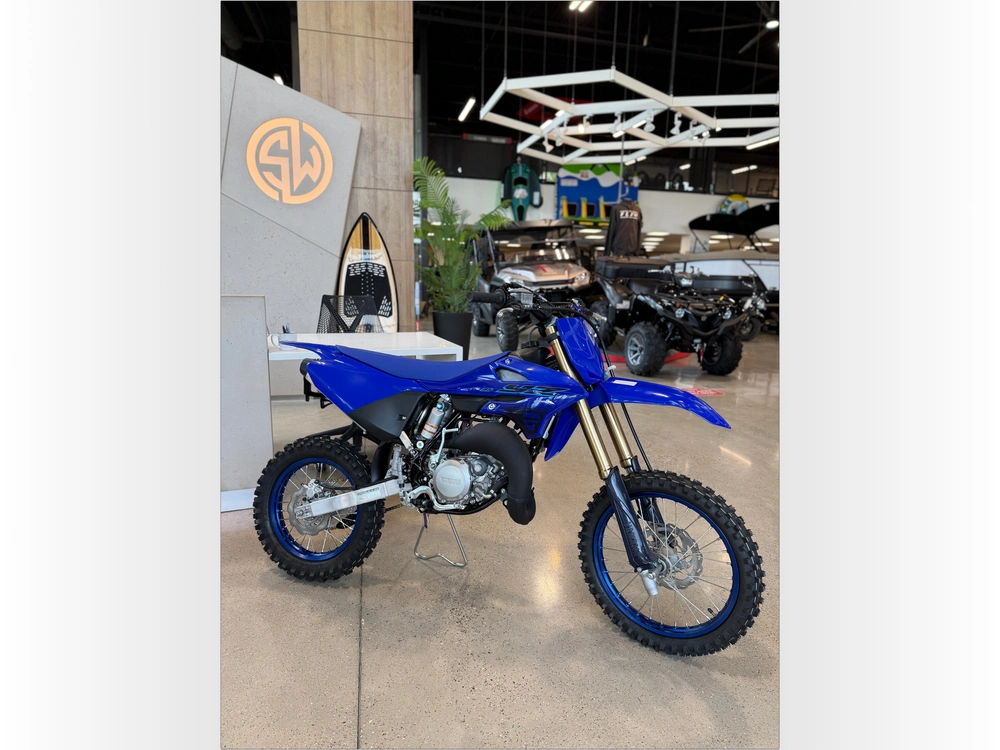

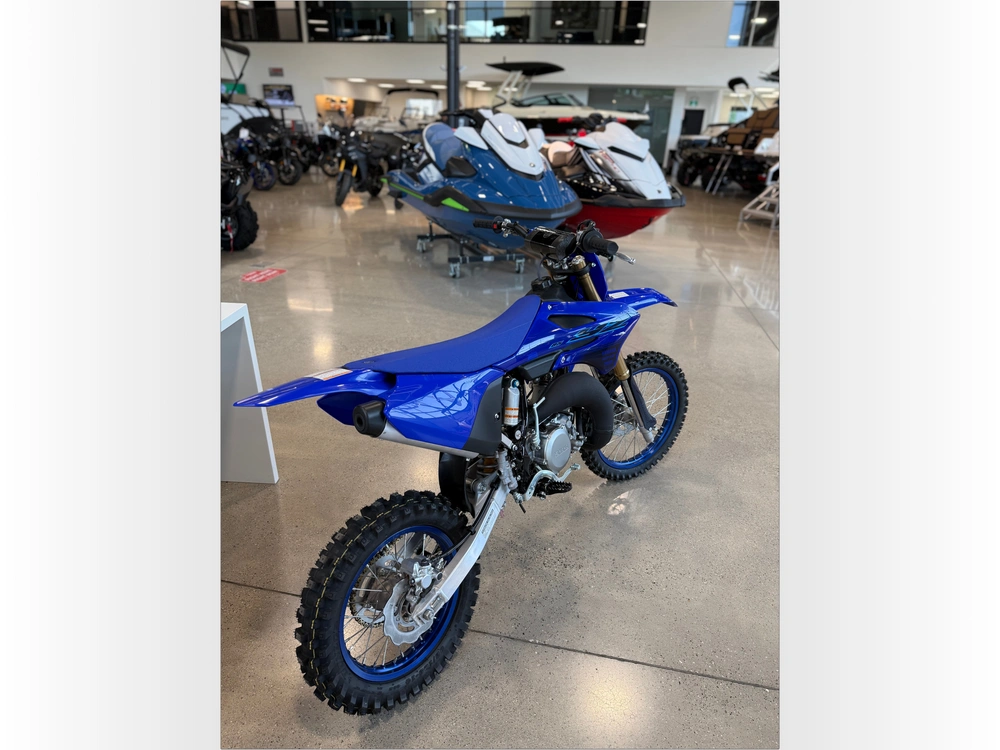

2024 Yamaha YZ85

Description

Built for fun. Built to win. The updated YZ85 serves up big-bike specs in a small-bike package. Featuring the Yamaha Power Valve System (YPVS), fully-adjustable suspension, six-speed transmission and adjustable ergonomics, the 2022 YZ85 is ready to win races straight off the dealership floor.

Key Features

• Stylish blue, lightweight 17-inch front and 14-inch rear rims are durable, reduce unsprung weight for optimal suspension performance, and come wrapped in Dunlop® MX3S tires for exceptional traction.

• Big 220mm and 190mm disc brakes offer precise control and one-finger stopping power.

• Yamaha Power Valve System (YPVS) for broad, tractable power

• Potent, easy-to-service two-stroke engine

• Smooth-shifting, six-speed, close-ratio transmission

• Compact, semi-double-cradle, single-backbone steel frame

• Race-ready, fully adjustable suspension

• Aggressive YZ styling

• Adjustable rider ergonomics

• High-spec wheels and brakes

Engine

• New Air Intake Design

• Updated intake design allows for a straighter, more efficient draw of air into the intake tract.

• Lightweight, compact, 85 cc, liquid-cooled, crankcase reed-valve inducted, 2-stroke single.

• The crankcase design features a spacer-style reed valve intake for improved air/fuel flow, which inhales through a 28mm Hitachi Astemo® Keihin flat-slide carburetor for seamless throttle response.

• Updated intake design allows for a straighter, more efficient draw of air into the intake tract.

• Yamaha Power Valve System (YPVS).

• Mechanical power valve system delivers effective exhaust timing throughout the entire rev range

• Provides excellent power and torque characteristics

• Boosts compression ratio and power output

• Delivers responsive acceleration just as the rider intends

• Slit-shaped valve on the side of the exhaust port operates in response to engine rpm

• In low-to-mid-rpm range when exhaust timing is slower, valve moves to cover the top part of the exhaust port

• In high rpm range when quick exhaust timing is needed, valve recedes and exhaust port is fully uncovered

• Shifting is reduced due to broad powerband

• Lightweight, forged piston.

• less reciprocating mass and less friction for a faster revving engine

• excellent durability

• CDI ignition system.

• provides a hot, precise spark for fast sure starts

• provides optimal timing for quicker, stronger response at all rpms

• maintenance-free

• Smooth-shifting, six-speed transmission.

• involute design increases the surface area contact between the gears

• special involute splines on main and drive shafts provide maximum engagement/hook-up for each gear for smoother, more positive shifts

• gear ratios are well matched to engine output

• Gear dimensions optimized for YPVS engine performance

• Heavy-duty, multi-plate clutch.

• smooth positive shifting

• Quick-remove, clutch sub-cover.

• fast, easy clutch access

• Lightweight radiator with high-capacity cores and special louvers to direct the air through the rad.

• maximum cooling efficiency

• Large-capacity airbox with washable, dual-stage, foam filter.

• excellent filtering qualities
  reduced expenses

• Lightweight exhaust system.

• expansion chamber designed to match the output of YPVS engine

• aluminum silencer is re-packable to maintain optimum performance and reduced noise levels

Chassis/Suspension

• The aluminum swingarm is redesigned in 2022 to refine balance between longitudinal and torsional rigidity

• Improved handling stability.

• A new removable rear subframe constructed from lightweight, high-strength aluminum reduces weight.

• A new flatter seat and more narrow fuel tank design, along with smoothly integrated body panels and slimmer shroud width, combine to enable greater freedom of movement forward and back.

• Allowing the rider to easily shift body weight for increased control and confidence.

• Rigid, semi-double cradle, single backbone, steel frame.

• blend of lightweight and good strength

• minimal flex for razor-sharp, moto-winning handling

• Lightweight box-section aluminum swingarm.

• composite chain guide and updated chain adjusters provide easier maintenance

• provides excellent rear-wheel control and traction

• Adjustable 36 mm inverted KYB fork with 275 mm (10.8 in) of wheel travel.

• low-friction outer tubes and internals are similar to full-size YZ models

• 20 clicks of both compression and rebound damping

• adjustable design allows suspension settings to match rider weight, rider style and track conditions

• YZ125 / 250-based "big bike" valving and low-friction fork seals

• smooth, compliant stroke for superior suspension performance and handling

• front fork guard redesigned with brake hose outside of fork guard

• Fully adjustable Monocross link rear suspension provides 282 mm (11.1 in) of wheel travel.

• Kayaba piggyback shock reduces shock temperatures during a long moto for fade resistant damping and consistent performance.

• adjustments include "threaded" spring preload, 15 clicks of compression and 20 clicks of rebound damping

• optional shock springs are available through Yamaha Genuine Parts and Accessories

• 220 mm front stainless steel wave front disc with twin-piston caliper.

• delivers strong stopping power with excellent control and great feedback.

• Tapered aluminum handlebar and adjustable crown.

• Tapered handlebar

• "Shorty-style" adjustable front brake lever.

• adjusts to fit various hand sizes

• Clutch lever holder allows for clutch lever reach adjustment.

• adjusts to fit various hand sizes.

• 190 mm stainless steel rear disc brake squeezed by a single piston caliper.

• Excellent stopping power

• caliper is protected by a rugged plastic protector

• Lightweight, blue 17-inch front and 14-inch rear DID rims.

• excellent durability

• reduces unsprung weight for optimal suspension performance

• Dunlop MX3S knobby tires offer exceptional traction

• Modern, aggressive, slim line bodywork.

• slim body design for excellent freedom of movement and rider mobility

Details

• Sharp New Graphics Scheme

• Inspired by its YZ125 sibling, a new graphics scheme highlights the YZ's unmatched racing pedigree. Premium Yamaha Blue and dark blue graphics are now embedded to provide excellent durability and scratch resistance.

• The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences.

• Sealed tapered steering head bearings for extra durability

• Serrated rear brake pedal and folding shift lever tip

• Wide, cast-alloy serrated footpegs offer good grip

• Stainless steel inner clutch cable for longer life and smooth operation

• Rubber boots on clutch and brake levers to reduce dirt, mud and water entry for durability

• Convenient lifting holes in side cover

• New rugged chain guide helps prevent chain from derailing and also protects rear sprocket

• E10 friendly fuel system components
